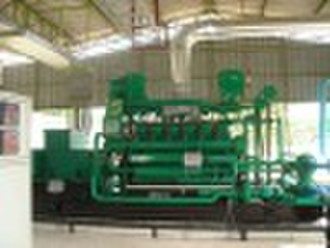

**Shengli** Biomass generator set

Biomass generator set Ranging from 75kVA to over 625Kva 1. Better use of biomass resources for renewable energy to the world. Biomass is a renewable energy resource derived from the carbonaceous waste of various human and natural activities, including wood chips, paper mill waste, wheat straw, saw dust, bark, forest residue chips and rice shell etc. It is derived from numerous sources, including the by-products from the timber industry, agricultural crops, raw materials from the forest and wood. 2. Biomass does not add carbon dioxide to the atmosphere as it absorbs the same amount of carbon in growing as it releases when consumed as a fuel. Its advantage is that it can be used to generate electricity with the same equipment. Traditional use of biomass is more than its use in modern application. In the developed world biomass is again becoming important for applications such as combined heat and power generation. BIOMASS GAS GENSET SPECIFICATIONS Description/ Genset Type 100GF-PJG 260GF-PJG 500GF1-PJG Electrical Output (kw) 100 260 500 Voltage (V) 400 400 400 Engine Type JG4190ZL-2 JG6190ZLDK-2 JG12V190ZLDK-2 Aspiration Naturally Aspirated Turbocharged Inter cooled Turbocharged Inter cooled Arrangement of cylinder 4-in line, 4-Stroke-Cycle 6-in line, 4-Stroke-Cycle V-12, 4-Stroke-Cycle Bore/Stroke (mm) 190/210 190/210 190/210 Engine Speed (rpm) 1000 1000 1000 Fuel consumption (MJ/kWh) 12.50 12.00 11.50 Exhaust temp. () ≤580 ≤580 ≤550 Ignition mode Spark-Ignited Spark-Ignited Spark-Ignited Starting Mode 24V DC Power 24V DC Power 24V DC Power Total Displacement (Lit) 23.82 35.72 71.45 Insulation Class F Class F Class F Excitement Brushless excited Brushless excited Brushless excited Length (mm) 4005 4650 5506 Width (mm) 1600 1970 1970 Height (mm) 1910 2675 2970 Weight Empty (kg) 6100 8000 12500 Biomass gas should be purified before burning in engine Biomass temperature ≤40 Biomass pressure 3-10kPa; Fluctuate rate of pressure ≤1kPa/min Tar≤20mg/Nm3 H2S≤200mg/Nm3 NH3≤20mg/Nm3 Granule≤5um Granule≤30mg/Nm3 Moisture≤40g/Nm3 and heat value minimum 4MJ/Nm3 Prime Import and Export Limited Company Tel: +86-546-8279101 Fax: +86-546-8279181 Cell:+86-18754692168
